TEXT AND PHOTOS BY JASON SANDS

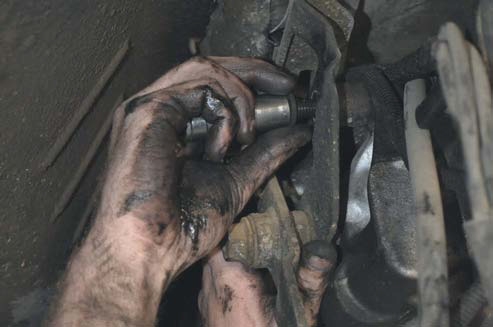

Before the factory Dodge 47RH four-speed could be removed, everything connected to the transmission had to be disassembled. The team of Garrett Von Flue and Gustavo “Goose” Quezada started with the driveline. Remember to check those U-joints!

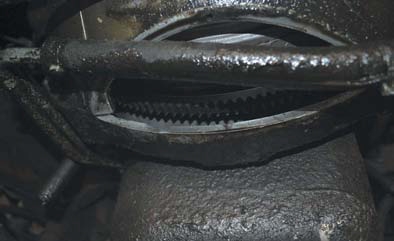

Underneath the Dodge you can see the flywheel with the inspection plate removed but not the converter bolts! There’s actually an access panel further up on the bellhousing. The engine can then be turned over with a barring tool to access each bolt.

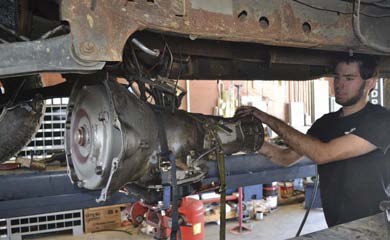

After loosening the transmission-to-engine bolts, everything was ready to come out! The sturdy stock pan was reinstalled and the transmission was lowered out of the truck with a transmission jack.

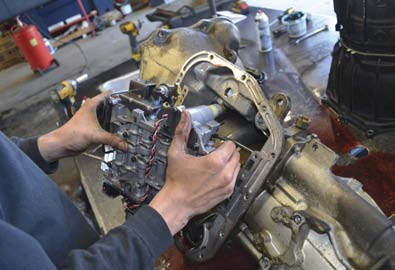

Once on the bench, the 47RH could now be disassembled and inspected. The first step was to remove the valvebody.
