Intel Arc B580
Donning our flowing cape and pointy hat, Linux Format is Battlemage!

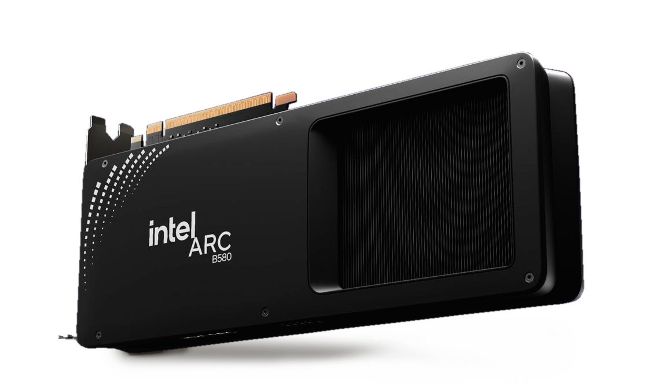

It won’t look this good when it’s in your PC case.
CREDIT: Intel
SPECS
Arch: BMG-G21
Process: TSMC N5
Xe cores: 20
Shaders: 2,560
XMX: 160
Ray units: 20 Clock: 2,850MHz
VRAM: 12GB, 192 bits, 19Gb/s
L2: Cache 18MB ROPs: 80
Texture units: 160
TFLOPS: 14.6 FP32, 117 FP16, 233 INT8
TDP: 190W
PCIe: x8 PCIe 4.0
We take a deep dive into the new Intel Xe 2 architecture on page 78, but we’re having a look at the first running silicon here. On paper, the B580 looks decidedly less powerful than the older A750, never mind the full-fat A770 16GB card. The B580 ‘only’ has 20 Xe-cores, compared to 28 on the A750 and 32 on the A770. The re-architecturing of the Xe cores from SIMD32 to SIMD16 means that the B580 should behave roughly on the level of a 34-Xe-core Alchemist chip. Except we need to factor in higher clock speeds as well, so this works out at around 28% more performance in the real world, give or take.
