HOW TO
ANIMATE A WATERWHEEL
In Graham Goodchild’s latest project, he animates a key element of rural industry – a mill with a working waterwheel.

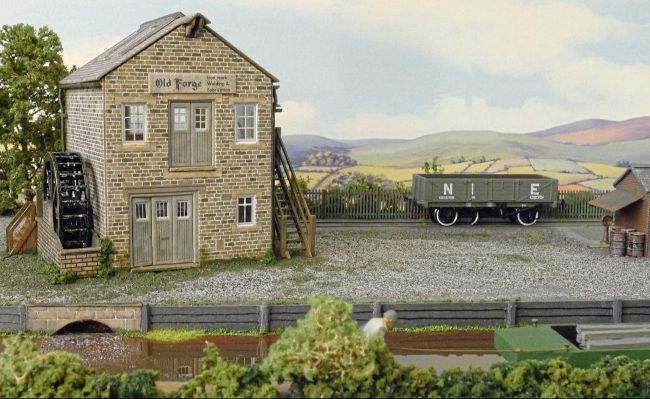

The Old Forge and its waterwheel were built from Metcalfe Models card kits, with the water race emerging into the river in the foreground.
PHOTOGRAPHY: GRAHAM GOODCHILD
Waterwheelshave been around for centuries and were first used in agriculture and heavy industry to power processes, from grinding flour to hammering iron.
As the industrial revolution gained a foothold, most waterwheels were eventually replaced by stationary steam engines, but many survived and examples have been restored to working order as tourist attractions.
There are three main types of waterwheel: stream, breastshot and overshot, whereby the head race of water is diverted from a river, pond or stream onto certain areas of the wheel depending on its position and height in relation to the water source. There’s a wealth of information about the design and operation of waterwheels freely available online, making for fascinating reading.
