Weather delays and technical challenges slow down progress on Build It’s Self Build Education House. Chris Bates gives his latest site update

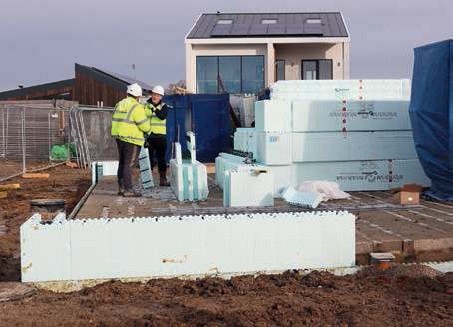

The first course of ICF is always critical. In our case, the beam and block floor meant the leaf of the Nudura needed to be trimmed

When I signed offlast month, we were about to get started on the main walls and hoping to reach weathertight in time for this issue. Well, we’ve not quite made it… which just goes to show delays can happen on any project. As it turns out, this has been the most challenging phase of the Education House build so far – which is saying something given that we’ve already finished the basement shell. The good news is we’re getting re-schooled on the kind of challenges that can come up on a self build scheme and how to navigate them – so there’s plenty of learning points to share!

Those of you who’ve been following our project regularly will know we’ve chosen insulating concrete formwork (ICF) for our main walling system, with a roof of structural insulated panels (SIPs). These modern techniques offer a number of advantages that make sense for the Build It Education House – including excellent insulation and airtightness out of the box. What’s more, ICF is easy to waterproof (ideal for basements) and SIPs can deliver great performance in a thin panel profile (great for maximising headroom in a loft space).

I described the basics of how ICF works in part four of this series. Fundamentally, you stack polystyrene formwork blocks, brace them, insert any steel reinforcement required by the engineering design, and then pump in the concrete (for a quick guide, see www.self-build.co.uk/icf). At this stage we’ve got openings to form for windows and doors, joists to go in etc – so it’s a bit different to constructing the basement.

ICF Supplies is providing the Nudura ICF system for the build. Their normal role is to specify and deliver the formwork package for your contractors to erect; but for the Education House they’re also sourcing much of the labour to get the project to wall plate level, ready for the roof to go on. Their in-house training team erected the ground floor formwork and most of the bracing etc, but technical challenges and weather delays meant they ran out of time – so Hadfield Concrete Structures have taken over for the rest of the walling and associated works (such as fitting the posijoists).

Having more than one team at this stage isn’t ideal, as it blurs boundaries, but our unusual project and circumstances (we’re building an Education House, after all) dictated we do things this way. As a self builder, you can simplify the process by appointing one point of contact for the main structural works – but you can’t control things like the weather.

Building up the ground floor

With the below-ground structure already in place, we had an existing template for building up the main walls. It’s not quite as simple as slotting the next course of formwork on top of the last layer of basement formwork, though. ICF Supplies’ team needed to saw offabout 150mm the bottom of the inside face of each Nudura unit to accommodate the beam and block floor structure. The crew also fitted a waterstop bead here, to reduce any risk of moisture getting through the concrete joint between the basement and ground floor walls.
